Angiographic & Diagnostic Catheter

Description

Flextrusion technology for a smooth transition from stiff proximal shaft to soft distal segment.

Flextrusion Technology

  • Soft distal segment is designed to reduce potential for vessel trauma, allowing safe engagement and coaxial alignment in the vessel
  • Smooth transition is designed to allow for better conformity to the anatomy and more controlled distal torque response

Design and Performance Dynamics

  • Firm Catheter shaft for users preferring a passive diagnostic catheter

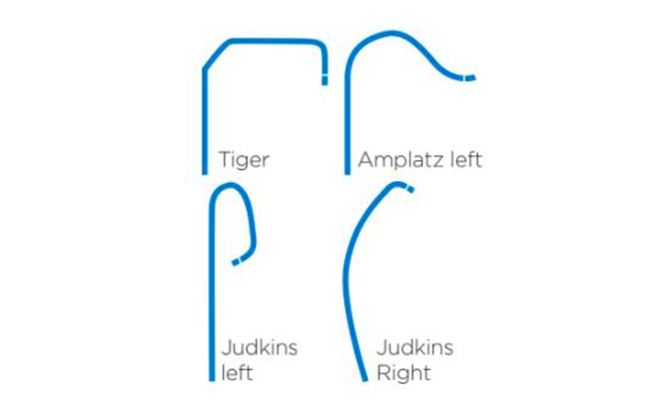

  • Variety of curve styles
  • Soft primary curve to help minimize vessel trauma

Anatomy Specific Designs

  • Left and right catheters are designed differently to meet the unique requirements of the left and right coronaries
  • Left catheter is designed for outstanding engagements
  • Right catheter is designed for excellent distal torque response when engaging the right coronary
Product code 5 FR Product code 6 FR Description Shape name Shape code Length (CM) Small Medium
FAD5JR3100 FAD6JR3100 Judkins Right JR 3.0 100 5 PCS 100 PCS
FAD5JR35100 FAD6JR35100 Judkins Right JR 3.5 100 5 PCS 100 PCS
FAD5JR40100 FAD6JR40100 Judkins Right JR 4.0 100 5 PCS 100 PCS
FAD5JL3100 FAD6JL3100 Judkins Left JL 3.0 100 5 PCS 100 PCS
FAD5JL35100 FAD6JL35100 Feather Angiographic & Diagnostic Catheter Judkins Left JL 3.5 100 5 PCS 100 PCS
FAD5JL40100 FAD6JL40100 Judkins Left JL 4.0 100 5 PCS 100 PCS
FAD5AL1001 FAD6AL1001s Amplatz AL I 100 5 PCS 100 PCS
FAD5AL1002 FAD6AL1002 Amplatz AL II 100 5 PCS 100 PCS
FAD5AR1001 FAD6AR1001 Amplatz AR I 100 5 PCS 100 PCS
FAD5AR1002 FAD6AR1002 Amplatz AR II 100 5 PCS 100 PCS
FAD5PIG110 FAD6PIG110 Pigtail Pigtail 110 5 PCS 100 PCS
FAD5PIG110R145 FAD6PIG110R145 Pigtail Pigtail 145 5 PCS 100 PCS
FAD5PIG110R155 FAD6PIG110R155 Pigtail Pigtail 155 5 PCS 100 PCS
FAD5RT100 FAD6RT100 Tiger RT 100 5 PCS 100 PCS
